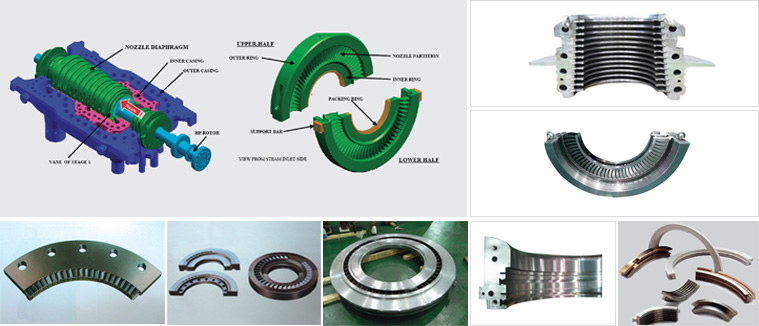

Diaphragm & Seal Ring

This device is used to increase thermal efficiency by transferring a flow of a suitable amount of high-temperature,
high-pressure steam to the power during the process of converting high-temperature, high-pressure heat energy into
kinetic energy.

---

Seal Ring / Packing Ring/ Labyrinth Ring / Spill Strip

These devices minimize steam leakage between the rotor and diaphragm (steel and bronze materials are used depending on the temperature and pressure at each row).

•

  This device minimizes steam leakage between the bucket edge and diaphragm.

•

  This device minimizes steam leakage between the gland box and diaphragm.

•

  This device reduces steam flow speed inside the packing ring during operation to enhance rotor stability.

---

Seal Ring = Packing Ring = Labyrinth Ring / Spill Strip = Ring Segment

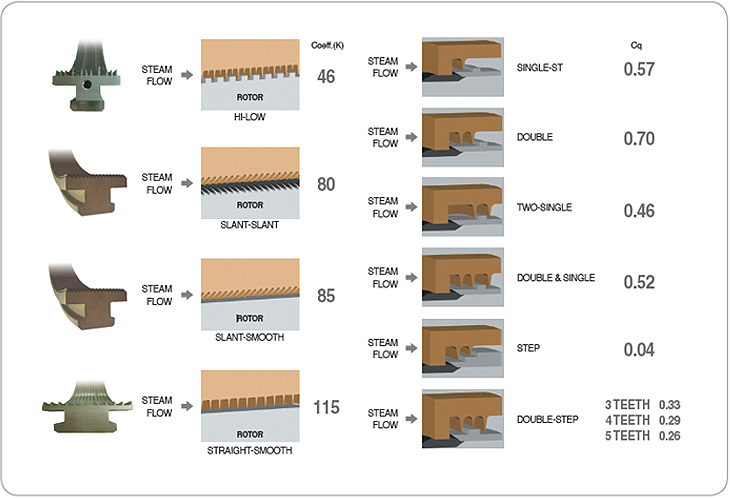

Leakage Comparison Data According to Seal Shape

These devices minimize steam leakage between the rotor and diaphragm (steel and bronze materials are used depending on the temperature and pressure at each row).
